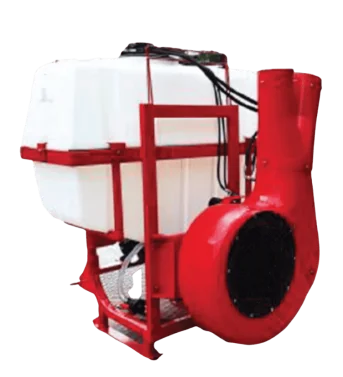

EMDEK EMD15 (Cannon Air Blast Sprayer)
UNIT DESCRIPTION
MODEL | 200 | 400 | 600 | 800 |
|---|---|---|---|---|
| Tank Capacity, lit | 200 | 400 | 600 | 800 |
| Tank Material | Fiberglass | Strong Polyethylene (PE) with UV Protection | ||
| Spraying Height, m | 12 – 15 | 15 – 20 | ||
| Horizontal Spraying, m | ± 20 | ± 25 | ||
| Spraying productivity, ha/day | ± 20 | 20 – 25 | ||
| Fan Turbine Speed | High Speed Turbine Fan, can reach 2,430 rpm with air volume of 18,000 m³/hr | High Speed Turbine Fan, can reach 2,430 rpm with air volume of 30,000 m³/hr | ||
| Max. Pump Pressure, bar | 40 | |||
| Pump Discharge Rate, L/min | 55 | |||
| Tractor horsepower Required, hp | 45 – 55 | 60 -95 | ||
| Max Tractor PTO, RPM | 540 | |||
| PTO Drive Shaft | T40 Drive Shaft | |||
| Tractor Linkage Category | Cat I & II | |||
| Dimension, cm (L x W x H) | 125 x 120 x 165 | 140 x 140 x 170 | 168 x 160 x 175 | 168 x 175 x 188 |
| Weight, kg | ± 240 | ± 270 | ± 300 | ± 317 |
